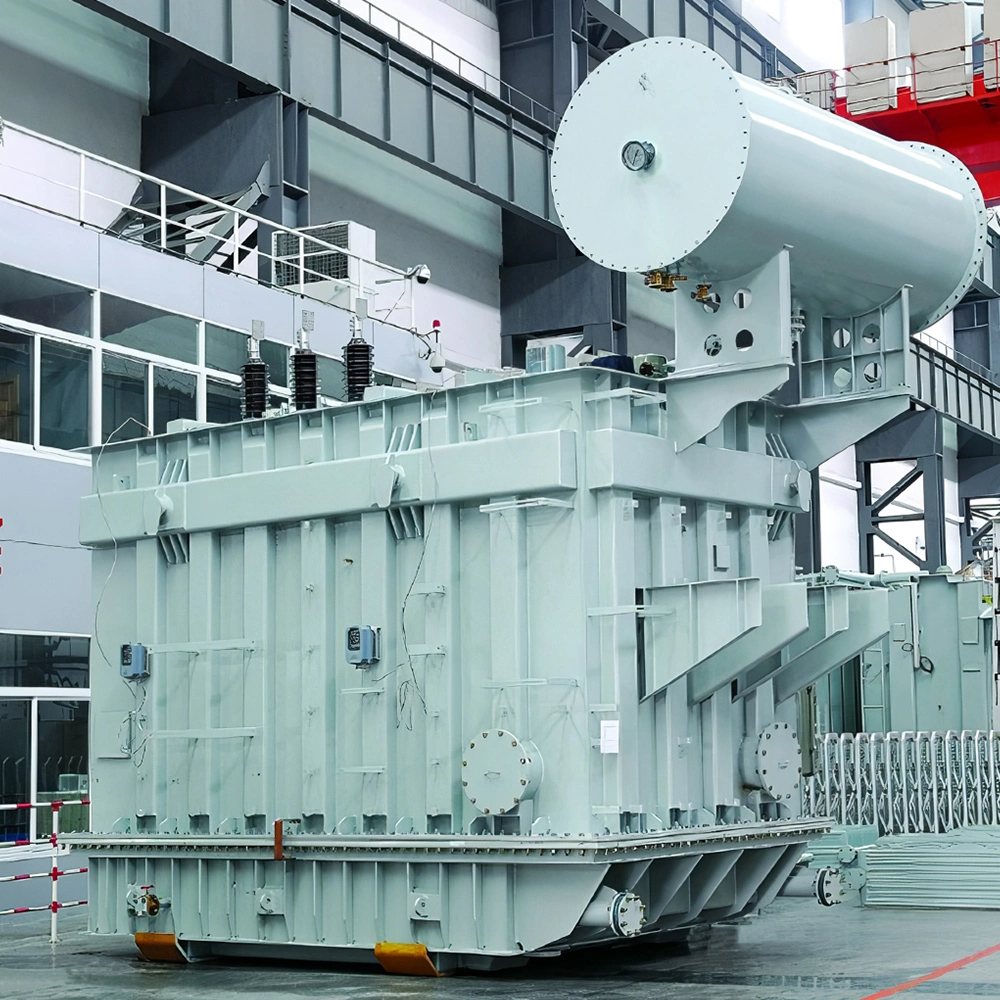

125mva 36kv Electric Arc Furnace Transformer for Steel Making
To provide all technical information and drawings as per contract promptly. VILLE is obliged to invite client, if necessary, to attend technical design review. To carry out spot technical service as per client's schedule, offer guideness for installation and commissioning according to technical information and drawings.
For relevant auxiliary equipment procured by customers, VILLE will provide relate technical information to meet requirement of equipment interface. To execute stipulations in MOU or agreement signed by seller and buyer strictly. To train staff from client for equipment installation, commissioning, application, maintenance as stipulated in the contract.
Model NO.: HHSPZ-120000 36KV
Cooling Method: Oil-immersed Type Transformer
Winding Type: Multi-winding Transformer
BASIC INFO.
| Model NO. | HHSPZ-120000 36KV | Test | Type Test Report |
| Cooling Method | Oil-immersed Type Transformer | Voltage | 36kv |
| Winding Type | Multi-winding Transformer | Transport Package | Wooden packing |
| Certification | ISO9001-2000, ISO9001, Kema Certification | Specification | IEC60076 |
| Usage | Steel Plant -Eaf | Trademark | Ningbo ville |
| Frequency Characteristics | High Frequency | Origin | Made in China |
| Shape of Core | Ring | HS Code | 8504109000 |
| Brand | Ville | Production Capacity | 1/6monthes |
SERVICE GUARANTEE
1.To provide all technical information and drawings as per contract promptly. VILLE is obliged to invite client, if necessary, to attend technical design review.
2.To carry out spot technical service as per client's schedule, offer guideness for installation and commissioning according to technical information and drawings.
3.For relevant auxiliary equipment procured by customers, VILLE will provide relate technical information to meet requirement of equipment interface.
4.To execute stipulations in MOU or agreement signed by seller and buyer strictly.
5.To train staff from client for equipment installation, commissioning, application, maintenance as stipulated in the contract.
6.To reinforce pre-sales, mid-sales, after-sales service, to carry out "24-hour service", "service in advance", "overall process service", "lifelong service" in our manufacturing, installation,commissioning and maintance.
7.To meet spare parts' requirement by customers at anytime.
TECHNICAL DATA
| Normal Voltage | 36KV 50Hz | Protection Contact Voltage | 110V DC |
| Operating Voltage | 33 kV ± 10% 50Hz | PLC signals | |
| Oil Pumps Voltage | 400V 50Hz 3 Phase | PLC | 24V DC |
| Tap-changer Operating Voltage | 115V AC 50Hz | Normal Voltage: | 36KV 50Hz |
| Spacer Heater | 220V AC 50 Hz | Operating Voltage: | 33 kV ± 10% 50Hz |
| Lighting | 220V AC 50 Hz | Operating Voltage: | 400V 50Hz 3 Phase |
Packing and shippment:
