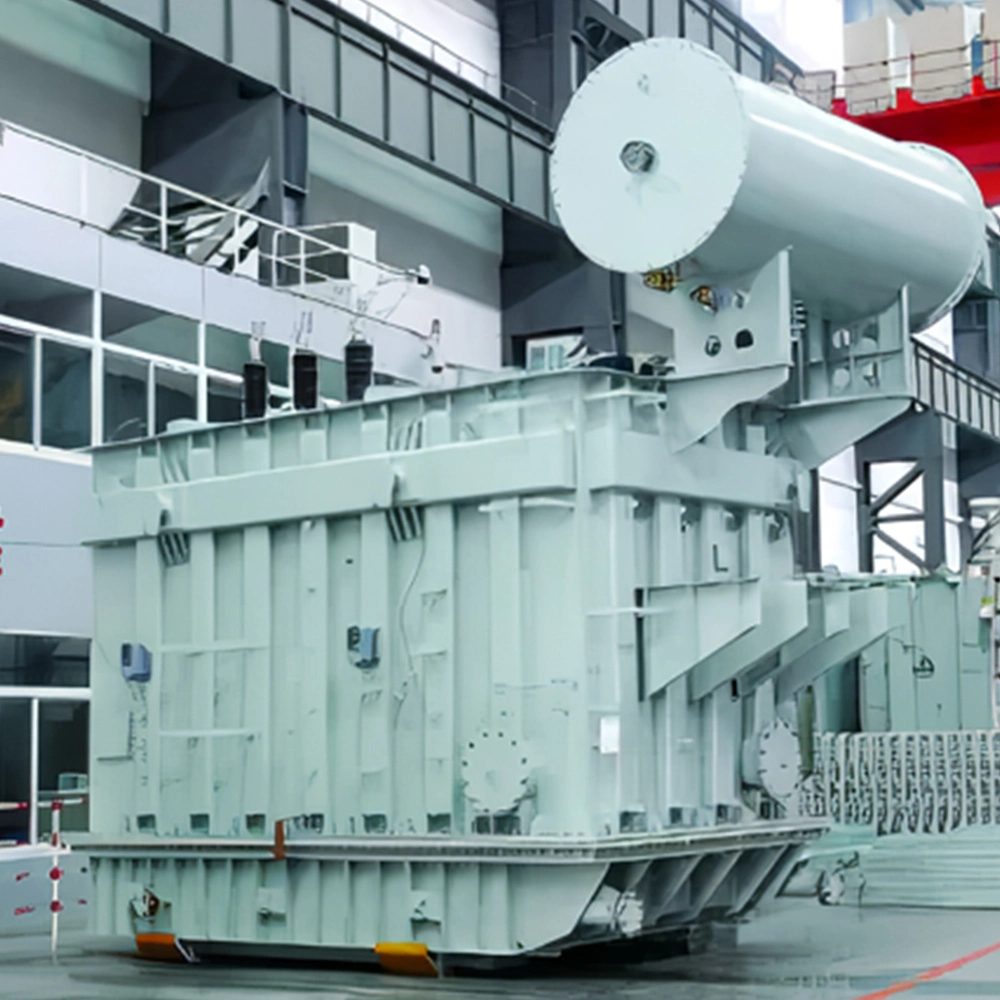

144mva 35kv Furnace Transformer for Metallurgical Electric Arc Furnace Transformer

Electric furnace transformers are transformers which supply power to the electric furnaces. It can drop high voltage to the working voltage the electric furnaces need.



There are many kinds of electric furnaces,so there are many kinds of electric furnace transformers cooperating with them.Now,our company manufactures following electric furnace transformers:electric furnace transformers used in steelelectric furnaces(including on-laod,no-load and enclosed reactor) ; mineral hot furnace transformers used to smelt kinds of iron alloys,hydrosilicons,carbides,etc(single phase,three phases on-load and no-load tap changer). They are low loss and energy-saving products.Cooling methods are self-cooling, forced oil water cooling, etc.It can be designed specially according with customers' requirements. The model of the electric furnace transformer is expressed as follows:



Model NO.: HSSPZ-144000/33

Cooling Method: Oil-immersed Type Transformer

Winding Type: Multi-winding Transformer

    oops...!

    no product data.

    Go to homepage

    BASIC INFO.

    Model NO. HSSPZ-144000/33 No Load Losses 52kw
    Cooling Method Oil-immersed Type Transformer Load Losses at 75 280 Kw ( 60mva 950V ) (Including LV Lead Losses
    Winding Type Multi-winding Transformer Cooling System Ofwf, Double Tube, 2 Coolers in Service.
    Usage Electric Arc Furnace Transformer On-Load Tap Changer Mr
    Frequency Characteristics Power Frequency Testing Routine Test According to IEC Standard
    Shape of Core Ring Transport Package Nuke Packing; Wooden Cases
    Brand Ville Specification IEC
    Arc Furnace Transformer Trademark Ville
    Steel Furnace Origin Ningbo China
    Type Calcium Carbide Furnace Transformer HS Code 8514901000
    Test Certification Kema Production Capacity 10/Years
    Reference Standard IEC 60076

    THE MEANING OF MODEL

    H--Steelmaking arc furnace,HJ--ladle furnace,HZ--electro-slag furnace,HC--calcium carbide furnace,HK--mineral
    hot furnace,HG--line frequency induction furnace;

    Number of phase:D--single phase,S--three phase;

    Types of cooling device :ONAN,wind cooling F,water cooling S.

    The methods of oil circulation:natural circulation,forced oilcirculation P.

    Tap changer:off-circuit tap changer,OLTC Z.

    Enclosed attached device:changing leakage flux,enclosed reactor K.

    Rated capacity:KVA. max 140MVA

    Voltage class:KV. 35KV

    10001_waifu2x_photo_noise2_scale

    TECHNICAL PARAMETERS

    10002_waifu2x_photo_noise2_scale (2)

    General data



    Operating Voltage

    33KV±3%

    Frequency

    50Hz±1%

    Rated capacity

    144 MVA

    Over load power

    144MVA plus 20%,30 min.

    Rated primary current

    1049.7 A

    Insulation Level (AC/LI)

    85/200 kV

    Vector group

    D/d0 with booster regulation transformer inside.

    Secondary connection

    Delta OPEN

    System short circuit capacity at 33kV side.

    1100 MVA

    Secondary outlet

    Terminals with Bus bars come out from top cover. 8 Buss bars by
    epoxy resin arranged along with each phase with matching cite
    transformer sizes.

    Max. Secondary current

    Approximate 42120 A

    Secondary voltage range

    950-500 V.

    a) Constant power

    950V-822.4 V at 60 MVA

    b) Constant current

    About 42062 A within 824V-500V

    c) Short-circuit voltage

    8 % (at 950V,60MVA)

    Type of tap changer

    On load tap-changer:

    a) Manufacturer

    MR,

    b) Number of tapes

    17 voltage steps with 18position See attached data sheet of 60
    MVA EAF transformer.

    c) Oil filter equipment for OLTC

    yes

    Cooling

    OFWF

    10006_waifu2x_photo_noise2_scale (2)
    5_waifu2x_photo_noise2_scale (3)
    10005_waifu2x_photo_noise2_scale
