Is specialized in designing, manufacturing for power transformers ,furnace transformers and reactor.

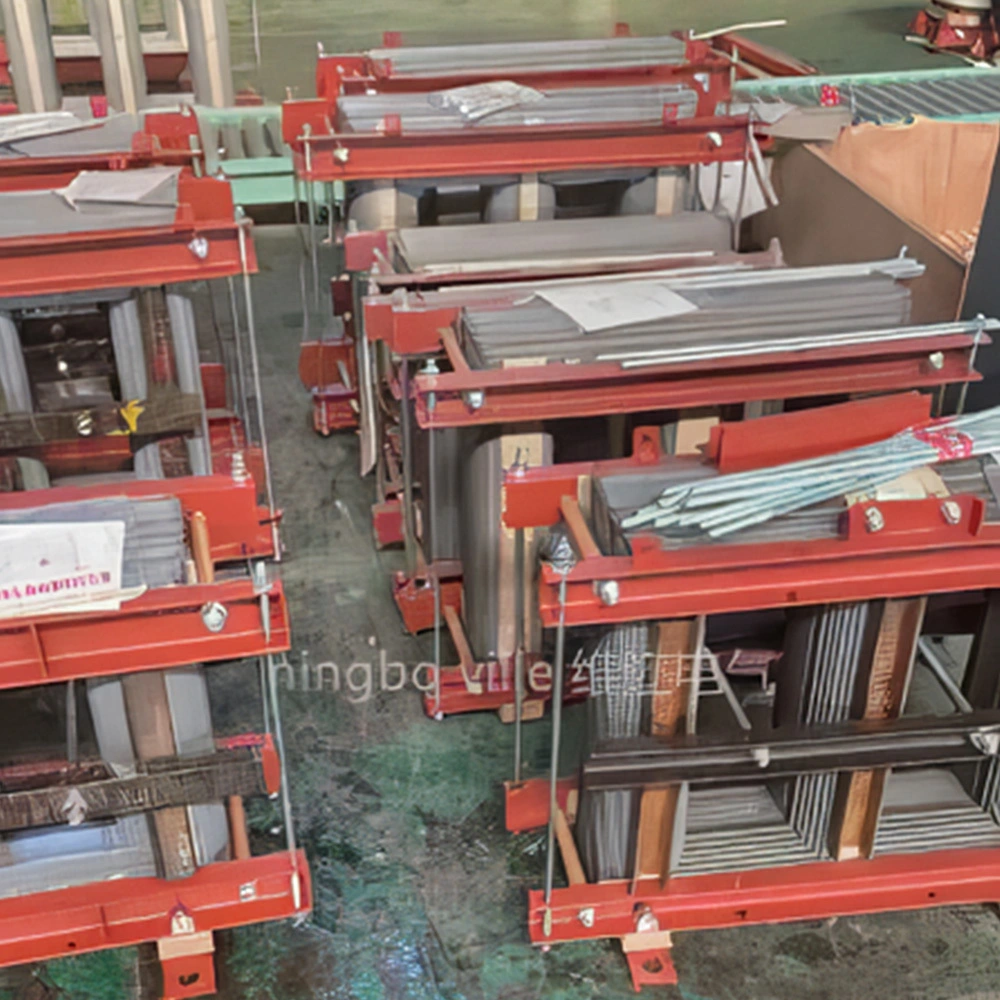

2500kVA Transformer Laminated Core Sheets Cutting 2000kVA 1600kVA 1

2500kVA Transformer Laminated Core Sheets Cutting 2000kVA 1600kVA 2

2500kVA Transformer Laminated Core Sheets Cutting 2000kVA 1600kVA 3

2500kVA Transformer Laminated Core Sheets Cutting 2000kVA 1600kVA 4

2500kVA Transformer Laminated Core Sheets Cutting 2000kVA 1600kVA 5

2500kVA Transformer Laminated Core Sheets Cutting 2000kVA 1600kVA

Transformer Laminated Core Sheets Cutting

Load regulating power transformer is developed and produced according to the requirement of the market. It can be widely used in urban & rural, industrial & agricultural power network, which has a great significance for energy-saving and environment protection. The lamination method of this product's iron core is ladder form, instead of the traditional iron core lamination technology, which improves the magnetic circuit distribution inside the iron core. It can be seen as a revolution of transformer iron core manufacturing.

Compared with the traditional, the no-load loss, no-load current and noise of the new one decrease 20% respectively, and load loss decreases 10%. The new product applies CAD, with advance design, reasonable structure, and excellent materials. Each index complies with the standards of GB1094-1996 "Power Transformer" GB/T6451-1999 "Technical Parameters and Requirements of Three-phase Oil-immersed Type Power Transformer". Now its level is the leading position of our country.

Model NO.: S-2000 S-2500 S1600

Cooling Method: Oil-immersed Type Transformer

Winding Type: Two-winding Transformer

Inquiry

Write a Review

BASIC INFO.

Model NO.	S-2000 S-2500 S1600	Brand	Ville
Cooling Method	Oil-immersed Type Transformer	Transport Package	Wooden Cases
Winding Type	Two-winding Transformer	Specification	IEC CE, ISO
Certification	ISO9001-2000, ISO9001	Trademark	VILLE
Usage	Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer	Origin	Ningbo China
Frequency Characteristics	High Frequency	HS Code	8504220000
Shape of Core	Ring	Production Capacity	3000/Year

Features aND application

Features:

◎ High reliability, advanced level of performance, economic indicators and reasonable;
◎ Using phase-shaped core of three joints, curing paint brushing the surface to reduce wear and tear and noise;
◎ Winding structure of a new oil road design is reasonable, with the new insulation to improve the mechanical strength and the ability to engage in short-circuit;
◎ Tank forms, beautiful, generous.

Range of application:
It can be widely used in urban power network as well as petrochemical, metallurgical, textile and humid,
inaccessible enterprises, and mining.

Technical parameters

TYPE	Capacity KVA	Load Loss	Load Negative consumption	Load	Impedance voltage	Dimensions						Weight KG
TYPE	Capacity KVA	Load Loss	Load Negative consumption	Current	Impedance voltage	A	B	C	D	E	F	Weight KG
S9-M-30/10	30	130	600	2.1	4	770	635	1000	14	400	400	310
S9-M-50/10	50	170	870	2	4	1100	660	1030	14	400	450	395
S9-M-63/10	63	200	1040	1.9	4	1130	670	1100	14	400	450	450
S9-M-80/10	80	210	1250	1.8	4	1140	675	1110	14	400	450	490
S9-M-100/10	100	290	1500	1.6	4	1185	690	1130	14	400	450	560
S9-M-125/10	125	340	1800	1.5	4	1205	710	1180	19	550	550	670
S9-M-160/10	160	400	2200	1.4	4	1255	720	1200	19	550	550	780
S9-M-200/10	200	480	2600	1.3	4	1295	740	1215	19	550	550	875
S9-M-250/10	250	560	3050	1.2	4	1340	755	1260	19	550	650	1115
S9-M-315/10	315	670	3650	1.1	4	1400	770	1320	19	550	650	1280
S9-M-400/10	400	800	4300	1	4	1500	860	1400	19	660	750	1495
S9-M-500/10	500	960	5150	1	4	1575	895	1430	19	660	750	1740
S9-M-630/10	630	1200	6200	0.9	4.5	1660	930	1545	19	660	850	2110
S9-M-800/10	800	1400	7500	0.8	4.5	1830	1070	1590	19	820	850	2625
S9-M-1000/10	1000	1700	10300	0.7	4.5	1935	1175	1685	19	820	850	2860
S9-M-1250/10	1250	1950	12000	0.6	4.5	1960	1170	1730	19	820	850	3330
S9-M-1600/10	1600	2400	14500	0.6	4.5	2050	1220	1810	19	820	900	3765
S9-M-2000/10	2000	2520	17820	0.5	4.5	2030	1215	1940	19	820	900	4530
S9-2500/10	2500	2970	23000	0.5	5.5	2280	2070	2415	19	820	1070	7050
