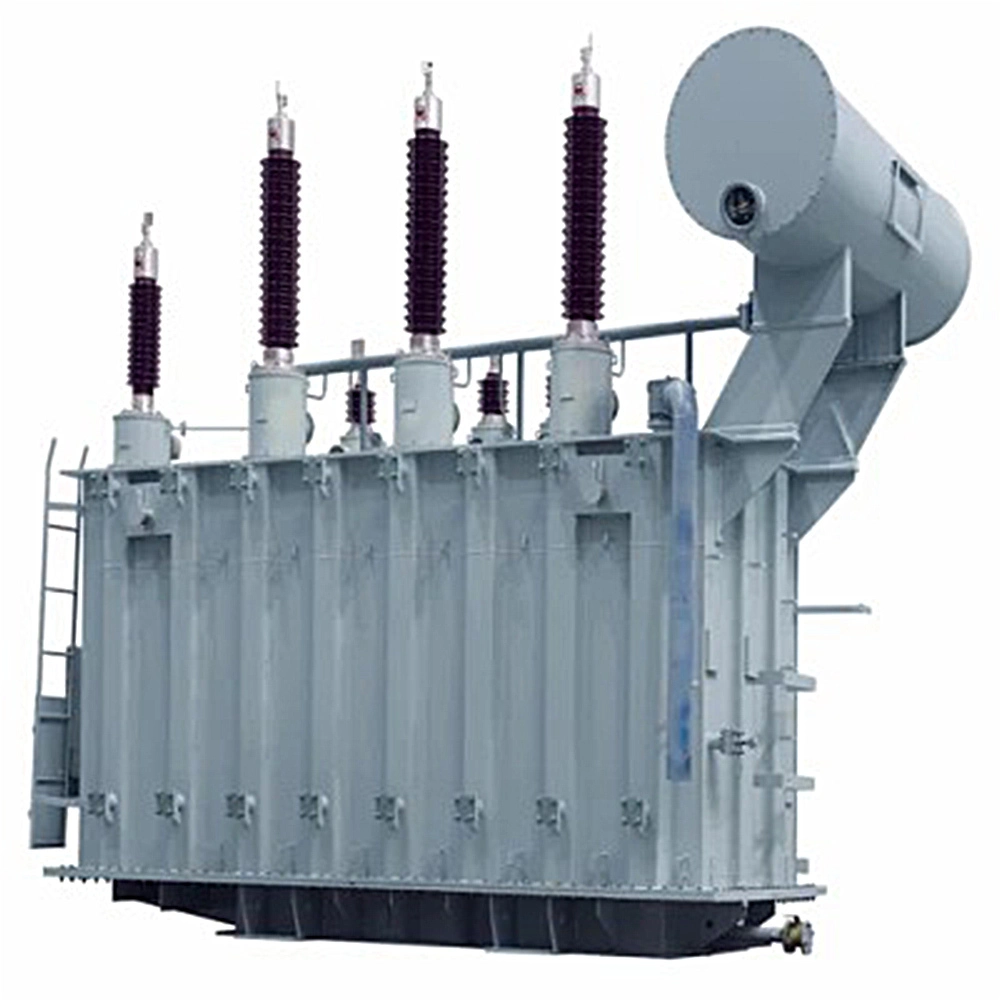

1.6mva 10kv Oil Immersed Electro Slag Remelting Furnace Transformer 3phase AC
Electroslag remelting furnace is used for remelting and refining steel produced by ordinary smelting methods. The electroslag furnace transformer is power supply of electroslag furnace transformer which produces aviation steel, high temperature alloy, resistance gold, precision alloy, some non-ferrous metals, large quality alloy ingot, large flat ingot or slab and other special shaped casting. There is no reactor in electroslag furnace transformer. The arc furnace transformer used in electroslag metallurgy and arc steelmaking are different, when arc slagging is made by electrodes adding auxiliary steel cuttings directly, there is only arc in the beginning stage.
When the slagging is completed, it is transformed into an electroslag process that produces virtually no arc and this process will continue to the end of smelting. In this process, the transformer of the electroslag furnace power supply needs low no-load voltage and small impedance voltage. Electroslag furnace transformers need regulating series in low voltage and there are three ways to regulat: 1. Non-load, non-excitation voltage regulation. 2. Non-load, on-excitation voltage regulation. 3. On-load voltage regulation. And no matter which way to regulate the voltage is through the switch on the high voltage winding.
BASIC INFO.
| Model NO. | HZD-1600/10 | Efficiency | 98% |
| Cooling Method | Ofwf | Connection Symbol | Li0/Yat/Dyn11 |
| Winding Type | Two-winding Transformer | Insulation Class | A |
| Certification | ISO9001-2000, ISO9001 | Transport Package | Wooden Cases |
| Usage | Power Transformer, Distribution Transformer, Furnace Transformer | Specification | IEC CE, ISO |
| Frequency Characteristics | 50/60Hz | Trademark | VILLE |
| Shape of Core | Toroidal | Origin | Ningbo China |
| Brand | Ville | HS Code | 8504220000 |
| Winding Material | Copper 100% | Production Capacity | 500/Year |
TYPE DESCRIPTION
HZ D SP Z - ***kVA / ***kV
HZ is electroslag furnace transformer.
D is single phase.
SP is forced oil water cooling.
Z is on-load voltage regulation.
***kVA is rated power.
***kV is rated input voltage.
FEATURES
◎ High reliability, advanced level of performance, economic indicators and reasonable;
◎ Using phase-shaped core of three joints, curing paint brushing the surface to reduce wear and tear and noise;
◎ Winding structure of a new oil road design is reasonable, with the new insulation to improve the mechanical strength and the ability to engage in short-circuit;
◎ Tank forms, beautiful, generous.
TECHNICAL PARAMETERS
| Voltage | 6kV, 10kV class; | Cooling method | Oil immersed ONAN; |
| Voltage regulation | Off circuit tap regulation; | Rated Capacity (KVA) | 1600 |
| Tapping range | ±5%, ±2X2.5%; | No-load Loss (W) | 2400 |
| Capacity range | 30-2500kVA; | Load Loss (W) | 14500 |
| Frequency | 50Hz, 60Hz; | Short-circuit Impedance (%) | 5.5 |
| Phase | Single phase and 3-phase; | No-load Current (%) | 0.6 |
| Vector group | Yyn0 or Dyn11 | Dimension (mm) | LxWxH=1630x1840x1870 |
| Impedance voltage | In line with national standard or according to customer's requirements; | Gauge(mm) | 820x820 L1:800 L2:40 |
| Operation environment | Max. temperature for outdoor operation | Weight (KG) | Oil Weight:560 |
| environment ≤ 40°C (or according to customer requirements); | Gross Weight | 3480 |
